OpenGL 공부 - 12 - New Beginning 3

Feb 8, 2021 2021-02-08T16:12:00+09:00 by Rito15
11 min

목표

  • 기본 렌더링 세팅
  • 기본 도형 렌더링


공부 내용

테스트를 위해 렌더링 옵션들 설정

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

// main.cpp - in main()

glEnable(GL_DEPTH_TEST);

glEnable(GL_CULL_FACE);
glCullFace(GL_BACK);
glFrontFace(GL_CCW); // 시계 반대 방향으로 구성된 폴리곤을 전면으로 설정

// 픽셀 블렌딩 연산 지정
glEnable(GL_BLEND);
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

// GL_LINE : 폴리곤을 선으로 그리기
// GL_FILL : 폴리곤을 색상으로 채우기
glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);


키보드 입력 테스트

1
2
3
4
5
6
7
8
9
10
11
12

// functions.hpp
void UpdateInputs(GLFWwindow* window)
{
    // ESC 누르면 윈도우 종료
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
    {
        glfwSetWindowShouldClose(window, GLFW_TRUE);
    }
}

// main.cpp - in Main Loop
UpdateInputs(window);


Vertex 정의, 데이터 생성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

struct Vertex
{
    glm::vec3 position;
    glm::vec3 color;
    glm::vec2 texcoord;
};

Vertex vertices[] =
{
    // Position                     // Color                      // TexCoord
    glm::vec3( 0.0f,  0.5f, 0.0f),  glm::vec3(1.0f, 0.0f, 0.0f),  glm::vec2(0.0f, 1.0f),
    glm::vec3(-0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 1.0f, 0.0f),  glm::vec2(0.0f, 0.0f),
    glm::vec3( 0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 0.0f, 1.0f),  glm::vec2(1.0f, 0.0f)
};

unsigned int numOfVertices = sizeof(vertices) / sizeof(Vertex);

GLuint indices[] =
{
    0, 1, 2
};

unsigned int numOfIndices = sizeof(indices) / sizeof(GLuint);


VAO, VBO, EBO 생성 및 바인딩

  • VAO : VBO를 담는 객체
  • VBO : 버텍스 데이터(위치, 색상, ..)를 담는 객체
  • EBO : 인덱스 데이터를 담는 객체
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

// VAO : Vertex Array Object
// VAO Gen & Bind
GLuint vao;
glCreateVertexArrays(1, &vao);
glBindVertexArray(vao);

// VBO : Vertex Buffer Object
// VBO Gen & Bind & Send Data
GLuint vbo;
glGenBuffers(1, &vbo);
glBindBuffer(GL_ARRAY_BUFFER, vbo);
glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

// EBO : Element Buffer Object
// EBO Gen & Bind & Send Data
GLuint ebo;
glGenBuffers(1, &ebo);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);


// Set VertexAttribPointers & Enable
// 1. Position
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, position));
glEnableVertexAttribArray(0);

// 2. Color
glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, color));
glEnableVertexAttribArray(1);

// 3. TexCoord
glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, texcoord));
glEnableVertexAttribArray(2);

// Bind VAO 0
glBindVertexArray(0);


메인 루프에서 렌더링

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

while (!glfwWindowShouldClose(window))
{
    // Update Input
    glfwPollEvents();

    // Update
    UpdateInputs(window);

    // Clear
    glClearColor(0.f, 0.f, 0.f, 1.f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);

    // Use a program
    glUseProgram(coreProgram);

    // Bind VAO
    glBindVertexArray(vao);

    // Draw
    //glDrawArrays(GL_TRIANGLES, 0, numOfVertices);
    glDrawElements(GL_TRIANGLES, numOfIndices, GL_UNSIGNED_INT, 0);

    // End Draw
    glfwSwapBuffers(window);
    glFlush();
}


실행 결과

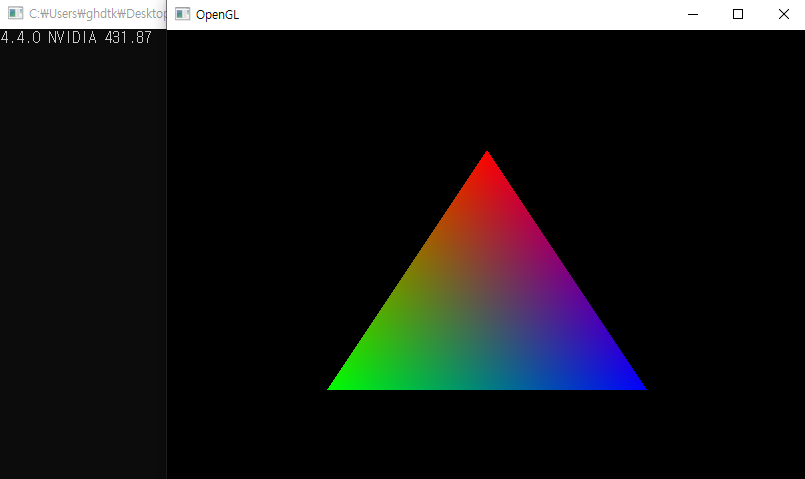

  • 채우기 모드

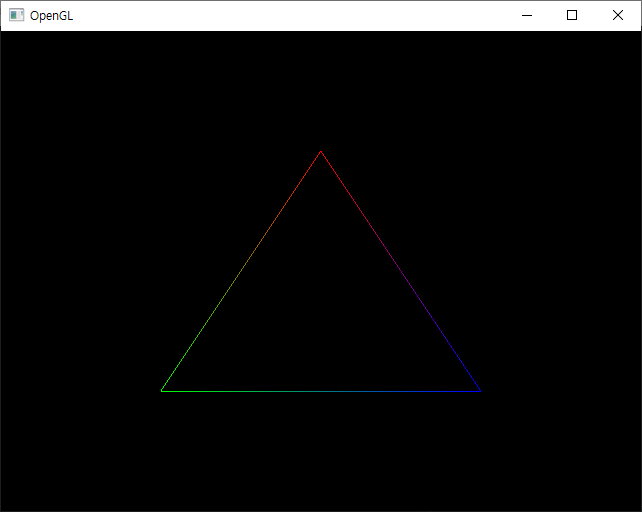

  • 와이어프레임 모드



사각형 렌더링하기

  • 버텍스와 인덱스를 다음처럼 수정한다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

Vertex vertices[] =
{
    // Position                     // Color                      // TexCoord
    glm::vec3(-0.5f,  0.5f, 0.0f),  glm::vec3(1.0f, 0.0f, 0.0f),  glm::vec2(0.0f, 1.0f), // LT
    glm::vec3(-0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 1.0f, 0.0f),  glm::vec2(0.0f, 0.0f), // LB
    glm::vec3( 0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 0.0f, 1.0f),  glm::vec2(1.0f, 0.0f), // RB
    glm::vec3( 0.5f,  0.5f, 0.0f),  glm::vec3(1.0f, 1.0f, 0.0f),  glm::vec2(1.0f, 1.0f)  // RT
};

// NOTE : Counter Clockwise
GLuint indices[] =
{
    0, 1, 2,
    0, 2, 3
};

unsigned int numOfVertices = sizeof(vertices) / sizeof(Vertex);
unsigned int numOfIndices  = sizeof(indices) / sizeof(GLuint);


실행 결과




Source Code

vertex_core.glsl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

#version 440

layout (location = 0) in vec3 vertex_position;
layout (location = 1) in vec3 vertex_color;
layout (location = 2) in vec3 vertex_texcoord;

out vec3 vs_position;
out vec3 vs_color;
out vec2 vs_texcoord;

void main()
{
    vs_position = vertex_position;
    vs_color = vertex_color;
    vs_texcoord = vec2(vertex_texcoord.x, vertex_texcoord.y * -1.f);

    gl_Position = vec4(vertex_position, 1.f);
}

fragment_core.glsl

1
2
3
4
5
6
7
8
9
10
11
12

#version 440

in vec3 vs_position;
in vec3 vs_color;
in vec2 vs_texcoord;

out vec4 fs_color;

void main()
{
    fs_color = vec4(vs_color, 1.f);
}

libs.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

#pragma once

#include <iostream>
#include <fstream>
#include <string>

#include <GL/glew.h> // Before GLFW
#include <GLFW/glfw3.h>

#include <GLM/glm.hpp>
#include <GLM/vec2.hpp>
#include <GLM/vec3.hpp>
#include <GLM/vec4.hpp>
#include <GLM/mat4x4.hpp>
#include <GLM/gtc/matrix_transform.hpp>
#include <GLM/gtc/type_ptr.hpp>

#include <SOIL2/SOIL2.h>

struct Vertex
{
    glm::vec3 position;
    glm::vec3 color;
    glm::vec2 texcoord;
};

variables.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

#pragma once

Vertex vertices[] =
{
    // Position                     // Color                      // TexCoord
    glm::vec3(-0.5f,  0.5f, 0.0f),  glm::vec3(1.0f, 0.0f, 0.0f),  glm::vec2(0.0f, 1.0f), // LT
    glm::vec3(-0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 1.0f, 0.0f),  glm::vec2(0.0f, 0.0f), // LB
    glm::vec3( 0.5f, -0.5f, 0.0f),  glm::vec3(0.0f, 0.0f, 1.0f),  glm::vec2(1.0f, 0.0f), // RB
    glm::vec3( 0.5f,  0.5f, 0.0f),  glm::vec3(1.0f, 1.0f, 0.0f),  glm::vec2(1.0f, 1.0f)  // RT
};

// NOTE : Counter Clockwise
GLuint indices[] =
{
    0, 1, 2,
    0, 2, 3
};

unsigned int numOfVertices = sizeof(vertices) / sizeof(Vertex);
unsigned int numOfIndices  = sizeof(indices) / sizeof(GLuint);

functions.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114

#pragma once

// 키보드 입력받아 처리
void UpdateInputs(GLFWwindow* window)
{
    // ESC 누르면 윈도우 종료
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
    {
        glfwSetWindowShouldClose(window, GLFW_TRUE);
    }
}

void FramebufferResizeCallback(GLFWwindow* window, int fbW, int fbH)
{
    glViewport(0, 0, fbW, fbH);
}

// 버텍스 또는 프래그먼트 쉐이더 파일에서 읽어와 컴파일
GLuint CompileShader(GLenum shaderType, const char* fileDir)
{
    std::string fileOpenErrorMsg = "ERROR::LOAD_SHADER::COULD_NOT_OPEN_";
    std::string compileErrorMsg = "ERROR::LOAD_SHADER::COULD_NOT_COMPILE_";

    switch (shaderType)
    {
    case GL_VERTEX_SHADER:
        fileOpenErrorMsg += "VERTEX_FILE";
        compileErrorMsg += "VERTEX_SHADER";
        break;

    default:
        fileOpenErrorMsg += "FRAGMENT_FILE";
        compileErrorMsg += "FRAGMENT_SHADER";
        break;
    }

    char infoLog[512];
    GLint success;

    std::string line = "";
    std::string src = "";

    std::ifstream in_file;

    // 쉐이더 파일 읽어오기
    in_file.open(fileDir);

    if (in_file.is_open())
    {
        while (std::getline(in_file, line))
        {
            src += line + "\n";
        }
    }
    else
    {
        std::cout << fileOpenErrorMsg << std::endl;
        in_file.close();
        return NULL;
    }

    in_file.close();

    // 쉐이더 객체 생성, 컴파일
    GLuint shader = glCreateShader(shaderType);
    const GLchar* vertSrc = src.c_str();
    glShaderSource(shader, 1, &vertSrc, NULL);
    glCompileShader(shader);

    // 컴파일 에러 검사
    glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(shader, 512, NULL, infoLog);
        std::cout << compileErrorMsg << std::endl;
        std::cout << infoLog << std::endl;
        return NULL;
    }

    return shader;
}

// 버텍스, 프래그먼트 쉐이더, 프로그램 생성
bool CreateShaders(GLuint& program)
{
    char infoLog[512];
    GLint success;
    const char* ProgramLinkErrorMsg = "ERROR::LOADSHADERS::COULD_NOT_LINK_PROGRAM";

    GLuint vertexShader = CompileShader(GL_VERTEX_SHADER, "vertex_core.glsl");
    GLuint fragmentShader = CompileShader(GL_FRAGMENT_SHADER, "fragment_core.glsl");

    // 프로그램 객체 생성 및 쉐이더 부착
    program = glCreateProgram();
    glAttachShader(program, vertexShader);
    glAttachShader(program, fragmentShader);

    glLinkProgram(program);

    // 링크 에러 검사
    glGetProgramiv(program, GL_LINK_STATUS, &success);
    if (!success)
    {
        glGetProgramInfoLog(program, 512, NULL, infoLog);
        std::cout << ProgramLinkErrorMsg << std::endl;
        std::cout << infoLog << std::endl;
        return NULL;
    }

    // End
    glUseProgram(0);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);
}

main.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162

#include "libs.h"
#include "variables.hpp"
#include "functions.hpp"

int main()
{
    /*****************************************************************
                                   GLFW Init
    ******************************************************************/
    if (!glfwInit())
    {
        std::cout << "GLFW Init ERROR\n";
        return -1;
    }

    const int WINDOW_WIDTH  = 640;
    const int WINDOW_HEIGHT = 480;
    int framebufferWidth  = 0;
    int framebufferHeight = 0;

    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 4);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
    glfwWindowHint(GLFW_RESIZABLE, GL_TRUE);

    GLFWwindow* window
        = glfwCreateWindow(WINDOW_WIDTH, WINDOW_HEIGHT, "OpenGL", NULL, NULL);

    if (!window)
    {
        glfwTerminate();
        return -1;
    }

    glfwSetFramebufferSizeCallback(window, FramebufferResizeCallback);
    //glfwGetFramebufferSize(window, &framebufferWidth, &framebufferHeight);
    //glViewport(0, 0, framebufferWidth, framebufferHeight);

    // 현재 컨텍스트에서 윈도우 생성
    glfwMakeContextCurrent(window);

    // 프레임 진행 속도 설정
    glfwSwapInterval(1);

    /*****************************************************************
                                   GLEW Init
    ******************************************************************/
    // glewInit은 rendering context를 만들고 난 이후에 해야 함
    if (glewInit() != GLEW_OK)
    {
        std::cout << "GLEW INIT ERROR\n";
        glfwTerminate();
    }

    // 간단히 GLEW 버전 확인
    std::cout << glGetString(GL_VERSION) << std::endl;

    /*****************************************************************
                                   Options
    ******************************************************************/
    glEnable(GL_DEPTH_TEST);

    glEnable(GL_CULL_FACE);
    glCullFace(GL_BACK);
    glFrontFace(GL_CCW); // 시계 반대 방향으로 구성된 폴리곤을 전면으로 설정

    // 픽셀 블렌딩 연산 지정
    glEnable(GL_BLEND);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

    // GL_LINE : 폴리곤을 선으로 그리기 (Wireframe Mode)
    // GL_FILL : 폴리곤을 색상으로 채우기
    glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);

    /*****************************************************************
                                   Objects
    ******************************************************************/
    // Shader Init
    GLuint coreProgram;
    if (!CreateShaders(coreProgram))
    {
        glfwTerminate();
    }

    // Model


    // VAO : Vertex Array Object
    // VAO Gen & Bind
    GLuint vao;
    glCreateVertexArrays(1, &vao);
    glBindVertexArray(vao);

    // VBO : Vertex Buffer Object
    // VBO Gen & Bind & Send Data
    GLuint vbo;
    glGenBuffers(1, &vbo);
    glBindBuffer(GL_ARRAY_BUFFER, vbo);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    // EBO : Element Buffer Object
    // EBO Gen & Bind & Send Data
    GLuint ebo;
    glGenBuffers(1, &ebo);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);


    // Set VertexAttribPointers & Enable
    // 1. Position
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, position));
    glEnableVertexAttribArray(0);

    // 2. Color
    glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, color));
    glEnableVertexAttribArray(1);

    // 3. TexCoord
    glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, texcoord));
    glEnableVertexAttribArray(2);

    // Bind VAO 0
    glBindVertexArray(0);

    /*****************************************************************
                                   Main Loop
    ******************************************************************/
    while (!glfwWindowShouldClose(window))
    {
        // Update Input
        glfwPollEvents();

        // Update
        UpdateInputs(window);

        // Clear
        glClearColor(0.f, 0.f, 0.f, 1.f);
        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);

        // Use a program
        glUseProgram(coreProgram);

        // Bind VAO
        glBindVertexArray(vao);

        // Draw
        //glDrawArrays(GL_TRIANGLES, 0, numOfVertices);
        glDrawElements(GL_TRIANGLES, numOfIndices, GL_UNSIGNED_INT, 0);

        // End Draw
        glfwSwapBuffers(window);
        glFlush();
    }

    // End of Program
    glfwDestroyWindow(window);
    glfwTerminate();

    glDeleteProgram(coreProgram);

    return 0;
}

References

OpenGL, OpenGL Study
graphics opengl
This post is licensed under CC BY 4.0 by the author.
Recent Update
Contents

OpenGL 공부 - 11 - New Beginning 2

Custom Mouse Events (성능 향상된 마우스 이벤트 처리)
