Note
-
현재 메인 카메라의 뎁스 텍스쳐를 화면에 렌더링한다.
-
각 쉐이더의 ZWrite 여부에 관계 없이 모두 렌더링하는 단점이 있다.
-
렌더 큐 값이 2500(Skybox) 이하인 오브젝트들만 인식한다.
How to Use
-
DepthRenderer.cs 스크립트를 메인 카메라에 넣는다.
-
enabled를 체크/해제하여 화면에 렌더 텍스쳐를 보여줄지 여부를 결정할 수 있다.
Preview

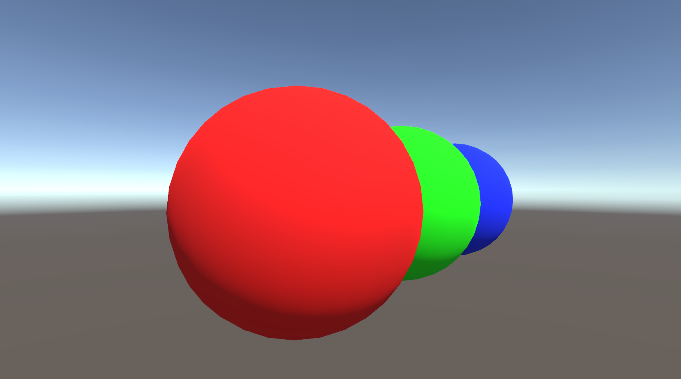

- 원래 화면

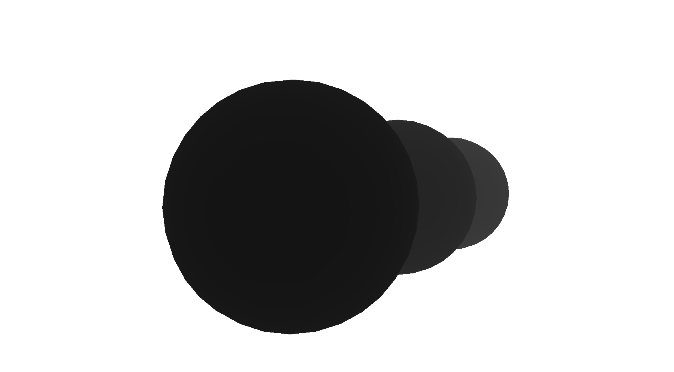

- 뎁스 텍스쳐 렌더링
Download
Source Code
RenderDepth.shader
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Shader "Custom/RenderDepth"
{
Properties
{
_MainTex ("Base (RGB)", 2D) = "white" {}
_DepthLevel ("Depth Level", Range(1, 3)) = 1
_DepthMul ("Depth Mul", Range(-1, 1)) = 0
}
SubShader
{
Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
uniform sampler2D _MainTex;
uniform sampler2D _CameraDepthTexture;
uniform fixed _DepthLevel;
uniform fixed _DepthMul;
uniform half4 _MainTex_TexelSize;
struct input
{
float4 pos : POSITION;
half2 uv : TEXCOORD0;
};
struct output
{
float4 pos : SV_POSITION;
half2 uv : TEXCOORD0;
};
output vert(input i)
{
output o;
o.pos = UnityObjectToClipPos(i.pos);
o.uv = MultiplyUV(UNITY_MATRIX_TEXTURE0, i.uv);
// why do we need this? cause sometimes the image I get is flipped. see: http://docs.unity3d.com/Manual/SL-PlatformDifferences.html
#if UNITY_UV_STARTS_AT_TOP
if (_MainTex_TexelSize.y < 0)
o.uv.y = 1 - o.uv.y;
#endif
return o;
}
fixed4 frag(output o) : COLOR
{
float depth = UNITY_SAMPLE_DEPTH(tex2D(_CameraDepthTexture, o.uv));
depth = pow(Linear01Depth(depth), _DepthLevel) * _DepthMul;
return depth;
}
ENDCG
}
}
}
DepthRenderer.cs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
using UnityEngine;
[ExecuteInEditMode]
public class DepthRenderer : MonoBehaviour
{
[Range(0f, 3f)]
public float depthLevel = 1.0f;
[Range(1f, 50f)]
public float depthMul = 20.0f;
private Shader _shader;
private Shader RdShader
=> _shader != null ? _shader : (_shader = Shader.Find("Custom/RenderDepth"));
private Material _material;
private Material RdMaterial
{
get
{
if (_material == null)
{
_material = new Material(RdShader);
_material.hideFlags = HideFlags.HideAndDontSave;
}
return _material;
}
}
private void OnEnable()
{
if (RdShader == null || !RdShader.isSupported)
{
enabled = false;
print("Shader " + RdShader.name + " is not supported");
return;
}
Camera.main.depthTextureMode = DepthTextureMode.None;
}
private void OnDisable()
{
if (_material != null)
DestroyImmediate(_material);
}
private void OnRenderImage(RenderTexture src, RenderTexture dest)
{
if (RdShader != null)
{
RdMaterial.SetFloat("_DepthLevel", depthLevel);
RdMaterial.SetFloat("_DepthMul", depthMul);
Graphics.Blit(src, dest, RdMaterial);
}
else
{
Graphics.Blit(src, dest);
}
}
}
