기본 쉐이더

빌트인 렌더파이프라인에서 Standard 쉐이더를 사용하듯,

URP에서는 Universal Render Pipeline/Lit 쉐이더를 기본으로 사용한다.

두 쉐이더는 라이팅의 영향을 받으며,

물리 기반 쉐이더(Physically-Based Shader, PBS)를 구현한다는 특징이 있다.

핑크 마테리얼

핑크핑크

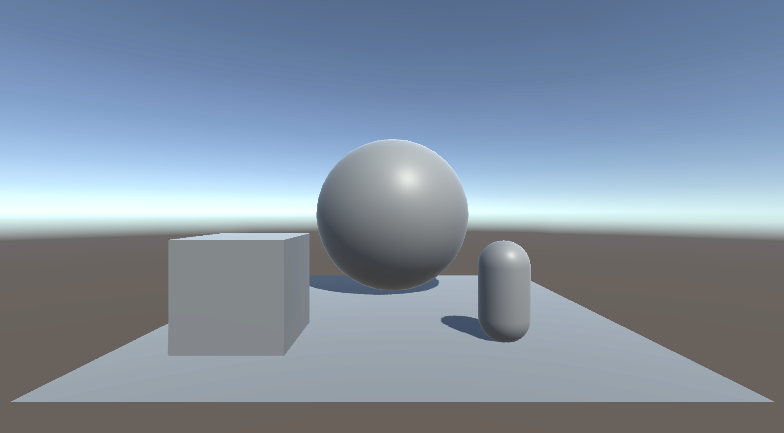

URP에서 작업한 위와 같은 씬을 빌트인 렌더파이프라인으로 옮겨오면

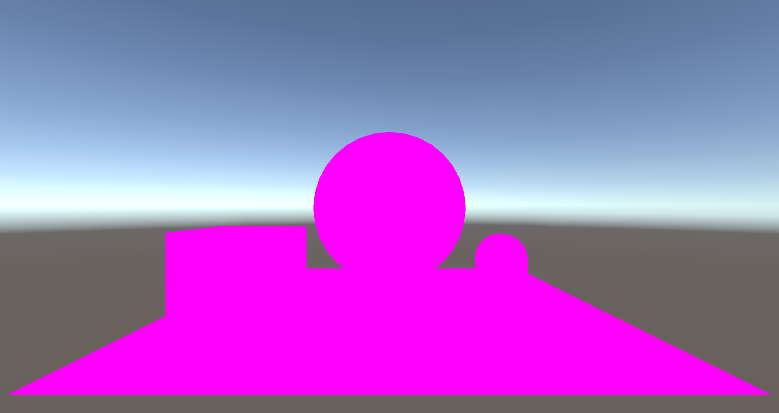

이렇게 핑크핑크하게, 전문 용어로 ‘마젠타’ 색상으로 변해버린다.

그 이유는 무엇일까?

URP Lit 쉐이더

경로

{프로젝트 경로}\Library\PackageCache\com.unity.render-pipelines.universal@11.0.0\Shaders\Lit.shader

마테리얼이 마젠타로 변하는 이유는 URP Lit 쉐이더의 구조를 살펴보면 간단히 알 수 있다.

Shader "Universal Render Pipeline/Lit"
{
    Properties
    {
        // ...
    }

    SubShader
    {
        Tags{"RenderType" = "Opaque" "RenderPipeline" = "UniversalPipeline" "UniversalMaterialType" = "Lit" "IgnoreProjector" = "True" "ShaderModel"="4.5"}

        // Passes
    }

    SubShader
    {
        Tags{"RenderType" = "Opaque" "RenderPipeline" = "UniversalPipeline" "UniversalMaterialType" = "Lit" "IgnoreProjector" = "True" "ShaderModel"="2.0"}

        // Passes
    }

    FallBack "Hidden/Universal Render Pipeline/FallbackError"
    CustomEditor "UnityEditor.Rendering.Universal.ShaderGUI.LitShader"
}

URP Lit 쉐이더는 위와 같이 4.5 Target SubShader, 2.0 Target SubShader, FallBack으로 구성되어 있다.

이 쉐이더를 빌트인 렌더파이프라인에 적용하려 했을 때, 앞의 두 SubShader는 호환되지 않으므로 모두 무시되고

마지막으로 FallBack에 의해 Hidden/Universal Render Pipeline/FallbackError 쉐이더가 적용된다.

URP FallbackError 쉐이더

경로

{프로젝트 경로}\Library\PackageCache\com.unity.render-pipelines.universal@11.0.0\Shaders\Utils\FallbackError.shader

이번에는 Hidden/Universal Render Pipeline/FallbackError 쉐이더의 내용을 살펴보자.

// Shader to use as a fallback error when rendering UniversalRP materials with built-in pipeline
Shader "Hidden/Universal Render Pipeline/FallbackError"
{
    SubShader
    {
        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma target 2.0
            #pragma multi_compile _ UNITY_SINGLE_PASS_STEREO STEREO_INSTANCING_ON STEREO_MULTIVIEW_ON
            #include "UnityCG.cginc"

            struct appdata_t
            {
                float4 vertex : POSITION;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct v2f
            {
                float4 vertex : SV_POSITION;
                UNITY_VERTEX_OUTPUT_STEREO
            };

            v2f vert(appdata_t v)
            {
                v2f o;
                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
                o.vertex = UnityObjectToClipPos(v.vertex);
                return o;
            }

            fixed4 frag(v2f i) : SV_Target
            {
                return fixed4(1,0,1,1);
            }
            ENDCG
        }
    }
    Fallback Off
}

다른건 딱히 볼 필요 없고, 프래그먼트 쉐이더(frag(){...}) 부분만 보면 된다.

이 쉐이더 함수에서는 fixed4(1,0,1,1)를 리턴한다는 것을 알 수 있다.

이 색상은 RGB(255, 0, 255), 즉 마젠타 색상이다.

정리

쉐이더를 적용할 때, 쉐이더 내에 작성된 SubShader들을 순차적으로 확인하여 호환되는 서브쉐이더가 적용된다.
모든 서브쉐이더가 호환되지 않으면 마지막으로 FallBack에 명시된 쉐이더가 적용된다.
URP/Lit의 FallBack 쉐이더는 RGB(255, 0, 255) 색상을 출력한다.
빌트인 렌더파이프라인에서는 URP/Lit의 모든 서브쉐이더가 호환되지 않으므로, FallBack이 적용된다.
같은 방식으로 빌트인 마테리얼이 URP에서는 마젠타 색상으로 출력된다.

URP, 빌트인 모두 호환되는 Lit 쉐이더 사용하기

렌더파이프라인을 변경해도 마젠타가 출력되지 않고, 잘 호환되도록 할 수 있을까?

FallBack을 이용하면 된다.

물론 렌더파이프라인을 변경하는 일이 자주 발생하지는 않을 것이다.

그리고 Edit - Render Pipeline - Universal Render Pipeline - Upgrade ... 메뉴를 통해

빌트인 마테리얼을 URP 마테리얼로 일괄 변경할 수 있긴 하다.

근데 그 반대(URP -> 빌트인)는 없는 것 같기도 하고,

어쨌든 하나의 쉐이더가 두 렌더파이프라인에 모두 호환되면 참 편리할 것 같다.

방법

빌트인 및 URP 양측에서 호환되는 기본 쉐이더(Lit)를 만드는 것은 아주 쉽다.

우선, 프로젝트 윈도우에서 Create - Shader를 통해 아무 쉐이더나 만든다.

그리고 {프로젝트 경로}\Library\PackageCache\com.unity.render-pipelines.universal@11.0.0\Shaders\Lit.shader 파일을 열어서 내용을 통째로 복사해온다.

그 다음에는 쉐이더 첫 줄에 적혀있는 쉐이더 이름을 원하는 대로 변경하고,

맨 마지막 줄 부근의 FallBack ~ 을 FallBack "Standard"로 변경한다.

그러면 쉐이더의 내용은 다음과 같이 변경되었을 것이다.

Shader "Compatible/Lit" // 원하는 "카테고리/쉐이더 이름" 작성
{
    ...

    FallBack "Standard"
    CustomEditor "UnityEditor.Rendering.Universal.ShaderGUI.LitShader"
}

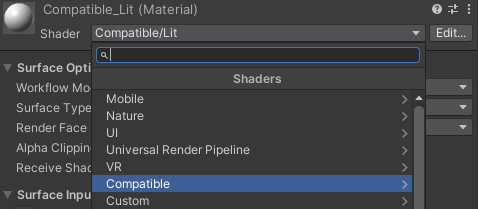

이제 모든 Lit 마테리얼에서 이 쉐이더를 적용해서 사용하면 된다.

이런 방식을 응용하여, Lit뿐만 아니라 다른 쉐이더에서도 빌트인 및 URP가 모두 호환되는 쉐이더를 작성할 수 있다.

추가 : 복사-붙여넣기용 코드

…

Shader "Compatible/Lit"
{
    Properties
    {
        // Specular vs Metallic workflow
        [HideInInspector] _WorkflowMode("WorkflowMode", Float) = 1.0

        [MainTexture] _BaseMap("Albedo", 2D) = "white" {}
        [MainColor] _BaseColor("Color", Color) = (1,1,1,1)

        _Cutoff("Alpha Cutoff", Range(0.0, 1.0)) = 0.5

        _Smoothness("Smoothness", Range(0.0, 1.0)) = 0.5
        _GlossMapScale("Smoothness Scale", Range(0.0, 1.0)) = 1.0
        _SmoothnessTextureChannel("Smoothness texture channel", Float) = 0

        _Metallic("Metallic", Range(0.0, 1.0)) = 0.0
        _MetallicGlossMap("Metallic", 2D) = "white" {}

        _SpecColor("Specular", Color) = (0.2, 0.2, 0.2)
        _SpecGlossMap("Specular", 2D) = "white" {}

        [ToggleOff] _SpecularHighlights("Specular Highlights", Float) = 1.0
        [ToggleOff] _EnvironmentReflections("Environment Reflections", Float) = 1.0

        _BumpScale("Scale", Float) = 1.0
        _BumpMap("Normal Map", 2D) = "bump" {}

        _Parallax("Scale", Range(0.005, 0.08)) = 0.005
        _ParallaxMap("Height Map", 2D) = "black" {}

        _OcclusionStrength("Strength", Range(0.0, 1.0)) = 1.0
        _OcclusionMap("Occlusion", 2D) = "white" {}

        [HDR] _EmissionColor("Color", Color) = (0,0,0)
        _EmissionMap("Emission", 2D) = "white" {}

        _DetailMask("Detail Mask", 2D) = "white" {}
        _DetailAlbedoMapScale("Scale", Range(0.0, 2.0)) = 1.0
        _DetailAlbedoMap("Detail Albedo x2", 2D) = "linearGrey" {}
        _DetailNormalMapScale("Scale", Range(0.0, 2.0)) = 1.0
        [Normal] _DetailNormalMap("Normal Map", 2D) = "bump" {}

        // SRP batching compatibility for Clear Coat (Not used in Lit)
        [HideInInspector] _ClearCoatMask("_ClearCoatMask", Float) = 0.0
        [HideInInspector] _ClearCoatSmoothness("_ClearCoatSmoothness", Float) = 0.0

        // Blending state
        [HideInInspector] _Surface("__surface", Float) = 0.0
        [HideInInspector] _Blend("__blend", Float) = 0.0
        [HideInInspector] _AlphaClip("__clip", Float) = 0.0
        [HideInInspector] _SrcBlend("__src", Float) = 1.0
        [HideInInspector] _DstBlend("__dst", Float) = 0.0
        [HideInInspector] _ZWrite("__zw", Float) = 1.0
        [HideInInspector] _Cull("__cull", Float) = 2.0

        _ReceiveShadows("Receive Shadows", Float) = 1.0
        // Editmode props
        [HideInInspector] _QueueOffset("Queue offset", Float) = 0.0

        // ObsoleteProperties
        [HideInInspector] _MainTex("BaseMap", 2D) = "white" {}
        [HideInInspector] _Color("Base Color", Color) = (1, 1, 1, 1)
        [HideInInspector] _GlossMapScale("Smoothness", Float) = 0.0
        [HideInInspector] _Glossiness("Smoothness", Float) = 0.0
        [HideInInspector] _GlossyReflections("EnvironmentReflections", Float) = 0.0

        [HideInInspector][NoScaleOffset]unity_Lightmaps("unity_Lightmaps", 2DArray) = "" {}
        [HideInInspector][NoScaleOffset]unity_LightmapsInd("unity_LightmapsInd", 2DArray) = "" {}
        [HideInInspector][NoScaleOffset]unity_ShadowMasks("unity_ShadowMasks", 2DArray) = "" {}
    }

    SubShader
    {
        // Universal Pipeline tag is required. If Universal render pipeline is not set in the graphics settings
        // this Subshader will fail. One can add a subshader below or fallback to Standard built-in to make this
        // material work with both Universal Render Pipeline and Builtin Unity Pipeline
        Tags{"RenderType" = "Opaque" "RenderPipeline" = "UniversalPipeline" "UniversalMaterialType" = "Lit" "IgnoreProjector" = "True" "ShaderModel"="4.5"}
        LOD 300

        // ------------------------------------------------------------------
        //  Forward pass. Shades all light in a single pass. GI + emission + Fog
        Pass
        {
            // Lightmode matches the ShaderPassName set in UniversalRenderPipeline.cs. SRPDefaultUnlit and passes with
            // no LightMode tag are also rendered by Universal Render Pipeline
            Name "ForwardLit"
            Tags{"LightMode" = "UniversalForward"}

            Blend[_SrcBlend][_DstBlend]
            ZWrite[_ZWrite]
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ALPHAPREMULTIPLY_ON
            #pragma shader_feature_local_fragment _EMISSION
            #pragma shader_feature_local_fragment _METALLICSPECGLOSSMAP
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A
            #pragma shader_feature_local_fragment _OCCLUSIONMAP
            #pragma shader_feature_local _PARALLAXMAP
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED
            #pragma shader_feature_local_fragment _SPECULARHIGHLIGHTS_OFF
            #pragma shader_feature_local_fragment _ENVIRONMENTREFLECTIONS_OFF
            #pragma shader_feature_local_fragment _SPECULAR_SETUP
            #pragma shader_feature_local _RECEIVE_SHADOWS_OFF

            // -------------------------------------
            // Universal Pipeline keywords
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            #pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            #pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
            #pragma multi_compile_fragment _ _SHADOWS_SOFT
            #pragma multi_compile_fragment _ _SCREEN_SPACE_OCCLUSION
            #pragma multi_compile _ LIGHTMAP_SHADOW_MIXING
            #pragma multi_compile _ SHADOWS_SHADOWMASK

            // -------------------------------------
            // Unity defined keywords
            #pragma multi_compile _ DIRLIGHTMAP_COMBINED
            #pragma multi_compile _ LIGHTMAP_ON
            #pragma multi_compile_fog

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitForwardPass.hlsl"
            ENDHLSL
        }

        Pass
        {
            Name "ShadowCaster"
            Tags{"LightMode" = "ShadowCaster"}

            ZWrite On
            ZTest LEqual
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            // -------------------------------------
            // Universal Pipeline keywords

            // This is used during shadow map generation to differentiate between directional and punctual light shadows, as they use different formulas to apply Normal Bias
            #pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

            #pragma vertex ShadowPassVertex
            #pragma fragment ShadowPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl"
            ENDHLSL
        }

        Pass
        {
            // Lightmode matches the ShaderPassName set in UniversalRenderPipeline.cs. SRPDefaultUnlit and passes with
            // no LightMode tag are also rendered by Universal Render Pipeline
            Name "GBuffer"
            Tags{"LightMode" = "UniversalGBuffer"}

            ZWrite[_ZWrite]
            ZTest LEqual
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            //#pragma shader_feature_local_fragment _ALPHAPREMULTIPLY_ON
            #pragma shader_feature_local_fragment _EMISSION
            #pragma shader_feature_local_fragment _METALLICSPECGLOSSMAP
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A
            #pragma shader_feature_local_fragment _OCCLUSIONMAP
            #pragma shader_feature_local _PARALLAXMAP
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED

            #pragma shader_feature_local_fragment _SPECULARHIGHLIGHTS_OFF
            #pragma shader_feature_local_fragment _ENVIRONMENTREFLECTIONS_OFF
            #pragma shader_feature_local_fragment _SPECULAR_SETUP
            #pragma shader_feature_local _RECEIVE_SHADOWS_OFF

            // -------------------------------------
            // Universal Pipeline keywords
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            //#pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            //#pragma multi_compile _ _ADDITIONAL_LIGHT_SHADOWS
            #pragma multi_compile _ _SHADOWS_SOFT
            #pragma multi_compile _ LIGHTMAP_SHADOW_MIXING
            #pragma multi_compile _ SHADOWS_SHADOWMASK

            // -------------------------------------
            // Unity defined keywords
            #pragma multi_compile _ DIRLIGHTMAP_COMBINED
            #pragma multi_compile _ LIGHTMAP_ON
            #pragma multi_compile_fragment _ _GBUFFER_NORMALS_OCT

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #pragma vertex LitGBufferPassVertex
            #pragma fragment LitGBufferPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitGBufferPass.hlsl"
            ENDHLSL
        }

        Pass
        {
            Name "DepthOnly"
            Tags{"LightMode" = "DepthOnly"}

            ZWrite On
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthOnlyVertex
            #pragma fragment DepthOnlyFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthOnlyPass.hlsl"
            ENDHLSL
        }

        // This pass is used when drawing to a _CameraNormalsTexture texture
        Pass
        {
            Name "DepthNormals"
            Tags{"LightMode" = "DepthNormals"}

            ZWrite On
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthNormalsVertex
            #pragma fragment DepthNormalsFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthNormalsPass.hlsl"
            ENDHLSL
        }

        // This pass it not used during regular rendering, only for lightmap baking.
        Pass
        {
            Name "Meta"
            Tags{"LightMode" = "Meta"}

            Cull Off

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex UniversalVertexMeta
            #pragma fragment UniversalFragmentMeta

            #pragma shader_feature_local_fragment _SPECULAR_SETUP
            #pragma shader_feature_local_fragment _EMISSION
            #pragma shader_feature_local_fragment _METALLICSPECGLOSSMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED

            #pragma shader_feature_local_fragment _SPECGLOSSMAP

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitMetaPass.hlsl"

            ENDHLSL
        }
        Pass
        {
            Name "Universal2D"
            Tags{ "LightMode" = "Universal2D" }

            Blend[_SrcBlend][_DstBlend]
            ZWrite[_ZWrite]
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex vert
            #pragma fragment frag
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ALPHAPREMULTIPLY_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/Utils/Universal2D.hlsl"
            ENDHLSL
        }
    }

    SubShader
    {
        // Universal Pipeline tag is required. If Universal render pipeline is not set in the graphics settings
        // this Subshader will fail. One can add a subshader below or fallback to Standard built-in to make this
        // material work with both Universal Render Pipeline and Builtin Unity Pipeline
        Tags{"RenderType" = "Opaque" "RenderPipeline" = "UniversalPipeline" "UniversalMaterialType" = "Lit" "IgnoreProjector" = "True" "ShaderModel"="2.0"}
        LOD 300

        // ------------------------------------------------------------------
        //  Forward pass. Shades all light in a single pass. GI + emission + Fog
        Pass
        {
            // Lightmode matches the ShaderPassName set in UniversalRenderPipeline.cs. SRPDefaultUnlit and passes with
            // no LightMode tag are also rendered by Universal Render Pipeline
            Name "ForwardLit"
            Tags{"LightMode" = "UniversalForward"}

            Blend[_SrcBlend][_DstBlend]
            ZWrite[_ZWrite]
            Cull[_Cull]

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ALPHAPREMULTIPLY_ON
            #pragma shader_feature_local_fragment _EMISSION
            #pragma shader_feature_local_fragment _METALLICSPECGLOSSMAP
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A
            #pragma shader_feature_local_fragment _OCCLUSIONMAP
            #pragma shader_feature_local _PARALLAXMAP
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED

            #pragma shader_feature_local_fragment _SPECULARHIGHLIGHTS_OFF
            #pragma shader_feature_local_fragment _ENVIRONMENTREFLECTIONS_OFF
            #pragma shader_feature_local_fragment _SPECULAR_SETUP
            #pragma shader_feature_local _RECEIVE_SHADOWS_OFF

            // -------------------------------------
            // Universal Pipeline keywords
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            #pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            #pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
            #pragma multi_compile_fragment _ _SHADOWS_SOFT
            #pragma multi_compile _ LIGHTMAP_SHADOW_MIXING
            #pragma multi_compile _ SHADOWS_SHADOWMASK
            #pragma multi_compile_fragment _ _SCREEN_SPACE_OCCLUSION

            // -------------------------------------
            // Unity defined keywords
            #pragma multi_compile _ DIRLIGHTMAP_COMBINED
            #pragma multi_compile _ LIGHTMAP_ON
            #pragma multi_compile_fog

            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitForwardPass.hlsl"
            ENDHLSL
        }

        Pass
        {
            Name "ShadowCaster"
            Tags{"LightMode" = "ShadowCaster"}

            ZWrite On
            ZTest LEqual
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            // -------------------------------------
            // Universal Pipeline keywords

            // This is used during shadow map generation to differentiate between directional and punctual light shadows, as they use different formulas to apply Normal Bias
            #pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

            #pragma vertex ShadowPassVertex
            #pragma fragment ShadowPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl"
            ENDHLSL
        }

        Pass
        {
            Name "DepthOnly"
            Tags{"LightMode" = "DepthOnly"}

            ZWrite On
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing

            #pragma vertex DepthOnlyVertex
            #pragma fragment DepthOnlyFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthOnlyPass.hlsl"
            ENDHLSL
        }

        // This pass is used when drawing to a _CameraNormalsTexture texture
        Pass
        {
            Name "DepthNormals"
            Tags{"LightMode" = "DepthNormals"}

            ZWrite On
            Cull[_Cull]

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            #pragma vertex DepthNormalsVertex
            #pragma fragment DepthNormalsFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthNormalsPass.hlsl"
            ENDHLSL
        }

        // This pass it not used during regular rendering, only for lightmap baking.
        Pass
        {
            Name "Meta"
            Tags{"LightMode" = "Meta"}

            Cull Off

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            #pragma vertex UniversalVertexMeta
            #pragma fragment UniversalFragmentMeta

            #pragma shader_feature_local_fragment _SPECULAR_SETUP
            #pragma shader_feature_local_fragment _EMISSION
            #pragma shader_feature_local_fragment _METALLICSPECGLOSSMAP
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED

            #pragma shader_feature_local_fragment _SPECGLOSSMAP

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitMetaPass.hlsl"

            ENDHLSL
        }
        Pass
        {
            Name "Universal2D"
            Tags{ "LightMode" = "Universal2D" }

            Blend[_SrcBlend][_DstBlend]
            ZWrite[_ZWrite]
            Cull[_Cull]

            HLSLPROGRAM
            #pragma only_renderers gles gles3 glcore d3d11
            #pragma target 2.0

            #pragma vertex vert
            #pragma fragment frag
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _ALPHAPREMULTIPLY_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/Utils/Universal2D.hlsl"
            ENDHLSL
        }
    }

    FallBack "Standard"
    CustomEditor "UnityEditor.Rendering.Universal.ShaderGUI.LitShader"
}

URP 마테리얼이 기본 렌더파이프라인에서 분홍색으로 나타나는 이유

기본 쉐이더

핑크 마테리얼

핑크핑크

URP Lit 쉐이더

경로

URP FallbackError 쉐이더

경로

정리

URP, 빌트인 모두 호환되는 Lit 쉐이더 사용하기

방법

추가 : 복사-붙여넣기용 코드

Trending Tags

URP 마테리얼이 기본 렌더파이프라인에서 분홍색으로 나타나는 이유

기본 쉐이더

핑크 마테리얼

핑크핑크

URP Lit 쉐이더

경로

URP FallbackError 쉐이더

경로

정리

URP, 빌트인 모두 호환되는 Lit 쉐이더 사용하기

방법

추가 : 복사-붙여넣기용 코드

Further Reading

URP에서 쉐이더 코딩하기 [작성 중]

쉐이더그래프로 물 쉐이더 만들기 [작성중]

(Amplify) Screen Effect - Posterize(Toon)

Trending Tags
