OpenGL 공부 - 18 - Specular, Rim Light

Feb 14, 2021 2021-02-14T15:38:00+09:00 by Rito15
23 min

목표

  • Specular Lighting, Rim Lighting 적용


공부 내용

필요한 유니폼 변수 전달

World View 벡터가 필요하므로, 이를 구하기 위한 카메라 위치를 전달해준다.

1
2
3

// main.cpp

glUniform3fv(glGetUniformLocation(shaderProgram, "cameraPos"), 1, glm::value_ptr(camPos));


프래그먼트 쉐이더

우선 라이팅 계산을 위한 벡터들을 만들어준다.

1
2
3
4
5
6
7
8
9
10
11
12

uniform vec3 lightPos0; // Main Light World Position
uniform vec3 cameraPos; // Camera World Position

void main()
{
    vec3 worldNormal = normalize(vs_normal);
    vec3 worldLight  = normalize(lightPos0 - worldPos);
    vec3 worldView   = normalize(cameraPos - worldPos);
    vec3 worldLightRefl = reflect(-worldLight, worldNormal);
    //vec3 worldLightRefl = normalize(2. * worldNormal * dot(worldNormal, worldLight) - worldLight);
    vec3 worldHalf = normalize(worldLight + worldView);
}

  • worldNormal(N) : 정점의 노멀 방향 벡터
  • worldLight(L) : 정점에서 광원을 향하는 방향 벡터
  • worldView(V) : 정점에서 카메라를 향하는 방향 벡터
  • worldLightRefl(R) : 노멀 벡터를 법선으로 L 벡터와 대칭이 되는 방향벡터
  • worldHalf(H) : V, L의 중간을 가로지르는 방향 벡터


Phong Specular

스페큘러의 원리는 다음과 같다.

1

물체의 표면에 반사된 빛의 방향과 시선이 이루는 각도가 작을수록 반사광이 강하게 맺힌다.

따라서 표면에 반사된 빛의 방향벡터는 R 벡터, 시선의 방향벡터는 V 벡터이고

두 벡터의 사잇각은 내적을 통해 간접적으로 구할 수 있으므로, 이를 이용한다.

1
2
3
4
5

vec3 specCol = vec3(1., 0., 0.);

float RdV = dot(worldLightRefl, worldView);
float specPhongPower = 30.;
float specPhong = pow(saturate(RdV), specPhongPower);

스페큘러를 강조하기 위해 스페큘러 색상은 붉은색으로 넣었다.

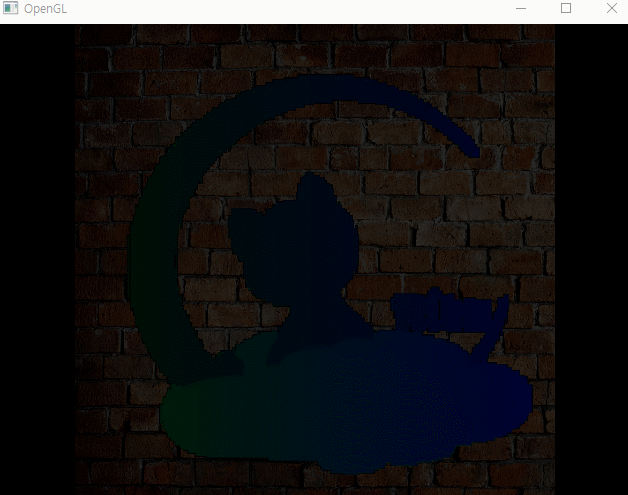

2021_0214_PhongSpec


Blinn Phong Specular

퐁 스페큘러는 반사 벡터를 구하는 비용이 저렴하지 않다.

그래서 이걸 보완할 수 있는 대표적인 스페큘러 공식이 블린 퐁 스페큘러이다.

L 벡터와 V 벡터의 중간 벡터인 H를 구했을 때,

dot(H, N)의 결과가 dot(R, V)와 유사하다는 점을 이용한다.

1
2
3

float NdH = dot(worldNormal, worldHalf);
float specBpPower = 500.;
float specBP = pow(saturate(NdH), specBpPower);

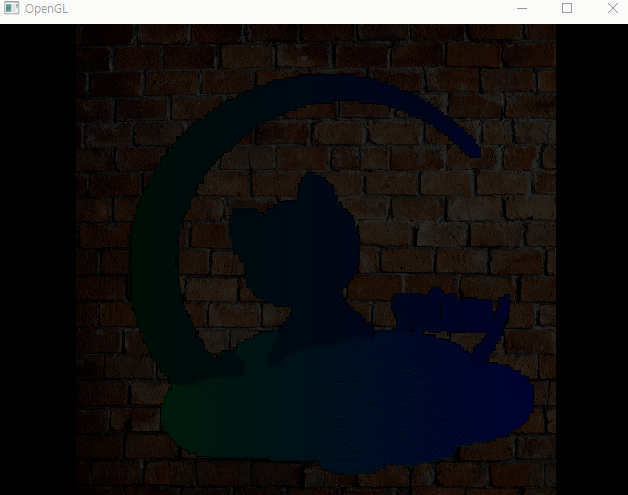

2021_0214_BlinnPhongSpec


Rim Light

림 라이트는 은은한 역광의 표현에 주로 사용되며, 프레넬 공식을 이용한다.

프레넬 공식은 시선 방향과 물체 표면이 이루는 각도의 관계를 다룬다.

이는 V 벡터와 N 벡터의 관계로 표현할 수 있고, 두 벡터의 사잇각이 직각에 가까울수록(dot(N, V)가 0에 가까울수록) 반사광이 강해짐을 나타낸다.

1
2
3

float NdV = dot(worldNormal, worldView);
float rimPower = 1.;
float rim = pow(1. - saturate(NdV), rimPower) * 2.;

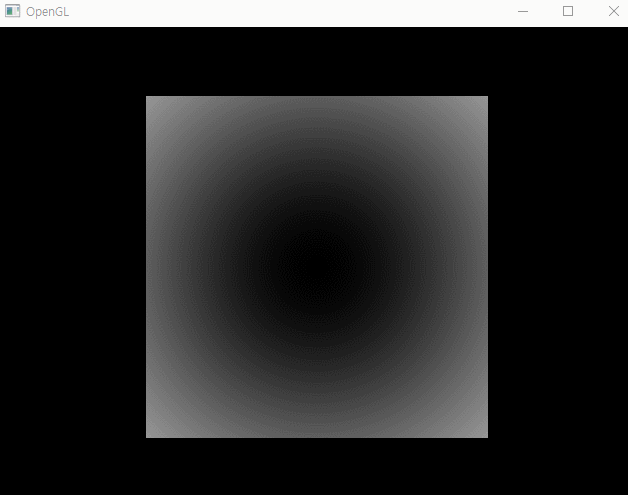

2021_0214_RimLight

  • 림라이트를 더 확실하게 확인할 수 있도록 임시로 정육면체를 구현하였다.

Source Code

vertex_core.glsl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

#version 440

layout (location = 0) in vec3 vertex_position;
layout (location = 1) in vec3 vertex_color;
layout (location = 2) in vec3 vertex_texcoord;
layout (location = 3) in vec3 vertex_normal;

out vec3 vs_position;
out vec3 vs_color;
out vec2 vs_texcoord;
out vec3 vs_normal;

uniform mat4 ModelMatrix;
uniform mat4 ModelMatrixForNormal; // 노멀 변환용 행렬
uniform mat4 ViewMatrix;
uniform mat4 ProjectionMatrix;

void main()
{
    vec4 worldPos4 = ModelMatrix * vec4(vertex_position, 1.);
    vec4 clipPos4 = ProjectionMatrix * ViewMatrix * worldPos4;

    // 프래그먼트 쉐이더에는 월드 스페이스의 정점 데이터 전달
    vs_position = worldPos4.xyz;
    vs_color    = vertex_color;
    vs_texcoord = vec2(vertex_texcoord.x, vertex_texcoord.y * -1.);
    vs_normal   = (ModelMatrixForNormal * vec4(vertex_normal, 1.)).xyz;

    // 정점 쉐이더의 최종 출력(정점 좌표)은 클립 좌표
    gl_Position = clipPos4;
}

fragment_core.glsl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

#version 440

#define saturate(x) clamp(x, 0., 1.)

in vec3 vs_position;
in vec3 vs_color;
in vec2 vs_texcoord;
in vec3 vs_normal;

out vec4 fs_color;

uniform sampler2D catTex;
uniform sampler2D wallTex;
uniform vec3 lightPos0; // Main Light World Position
uniform vec3 cameraPos; // Camera World Position

void main()
{
    vec3 worldPos = vs_position;

    // ====================== World Vectors =========================
    vec3 worldNormal = normalize(vs_normal);
    vec3 worldLight  = normalize(lightPos0 - worldPos);
    vec3 worldView   = normalize(cameraPos - worldPos);
    vec3 worldLightRefl = reflect(-worldLight, worldNormal);
    //vec3 worldLightRefl = normalize(2. * worldNormal * dot(worldNormal, worldLight) - worldLight);
    vec3 worldHalf = normalize(worldLight + worldView);

    // ====================== Colors ================================
    vec3 catColor = texture(catTex, vs_texcoord).xyz;
    vec3 wallColor = texture(wallTex, vs_texcoord).xyz;
    vec3 catMask = step(vec3(0.01), catColor);

    vec3 albedo = mix(wallColor, catColor * vs_color, catMask);
    vec3 lightCol = vec3(1., 1., 1.);
    vec3 specCol = vec3(1., 0., 0.);

    // ====================== Lighting ==============================
    // Ambient Light
    vec3 ambient = vec3(.2);

    // Diffuse Light
    float NdL = dot(worldNormal, worldLight);
    float diffuse = saturate(NdL);

    // Specular Light
    // 1. Phong
    float RdV = dot(worldLightRefl, worldView);
    float specPhongPower = 30.;
    float specPhong = pow(saturate(RdV), specPhongPower);

    // 2. Blinn Phong
    float NdH = dot(worldNormal, worldHalf);
    float specBpPower = 500.;
    float specBP = pow(saturate(NdH), specBpPower);

    // 3. Rim Light
    float NdV = dot(worldNormal, worldView);
    float rimPower = 1.;
    float rim = pow(1. - saturate(NdV), rimPower) * 2.;

    // +. Real Rim

    // ====================== Final Color ============================
    vec3 col = albedo * lightCol * (diffuse + ambient) + specPhong * specCol;
    col = albedo * ( ambient) + specBP * specCol;
    //col = vs_normal;
    //col = vec3(diffuse);
    //col = vec3(specBP) + ambient;
    //col = vec3(diffuse) *.5 + specPhong * specCol + ambient;

    fs_color = vec4(col, 1.);
}

libs.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

#pragma once

#include <iostream>
#include <fstream>
#include <string>

#include <GL/glew.h> // Before GLFW
#include <GLFW/glfw3.h>

#include <GLM/glm.hpp>
#include <GLM/vec2.hpp>
#include <GLM/vec3.hpp>
#include <GLM/vec4.hpp>
#include <GLM/mat4x4.hpp>
#include <GLM/gtc/matrix_transform.hpp>
#include <GLM/gtc/type_ptr.hpp>

#include <SOIL2/SOIL2.h>

struct Vertex
{
    glm::vec3 position;
    glm::vec3 color;
    glm::vec2 texcoord;
    glm::vec3 normal;
};

errorHandler.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

#pragma once

// x가 false인 경우 브레이크 포인트를 걸고 중단한다.
#define ASSERT(x)  if(!(x)) __debugbreak();

// 해당 부분의 에러를 검사하여, 에러 발생 시 정보를 출력한다.
#define GLCheck(x) GLClearError();\
                   x;\
                   ASSERT(GLCheckError(#x, __FILE__, __LINE__))

/// <summary>
/// 해당 지점까지 발생한 에러 메시지를 모두 비워준다.
/// </summary>
static void GLClearError()
{
    while (glGetError() != GL_NO_ERROR);
}

/// <summary>
/// 해당 지점에서 발생한 에러 메시지와 메타 정보를 출력한다.
/// </summary>
static bool GLCheckError(const char* function, const char* file, int line)
{
    while (GLenum error = glGetError())
    {
        std::string errStr = "";
        switch (error)
        {
            case GL_NO_ERROR:          errStr = "No Errors"; break;
            case GL_INVALID_ENUM:      errStr = "Invalid Enum"; break;
            case GL_INVALID_VALUE:     errStr = "Invalid Value"; break;
            case GL_INVALID_OPERATION: errStr = "Invalid Operation"; break;
            case GL_INVALID_FRAMEBUFFER_OPERATION: errStr = "Invalid Framebuffer Operation"; break;
            case GL_OUT_OF_MEMORY:   errStr = "Out of Memory"; break;
            case GL_STACK_UNDERFLOW: errStr = "Stack Underflow"; break;
            case GL_STACK_OVERFLOW:  errStr = "Stack Overflow"; break;

            default: errStr = "Unknown"; break;
        }

        std::cout << "[OpenGL Error] - " << errStr << std::endl
             << "Code : " << function << std::endl
             << "Line : " << file << " : " << line << std::endl << std::endl;
        return false;
    }
    return true;
}

variables.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

// Global Variables
#pragma once

// 1. 평면
//Vertex vertices[] =
//{
//    // Position                    // Color                     // TexCoord            // Normal
//    glm::vec3(-0.5f,  0.5f, 0.0f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(0.0f, 0.0f, 1.0f), // LT
//    glm::vec3(-0.5f, -0.5f, 0.0f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(0.0f, 0.0f, 1.0f), // LB
//    glm::vec3( 0.5f, -0.5f, 0.0f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(1.0f, 0.0f), glm::vec3(0.0f, 0.0f, 1.0f), // RB
//    glm::vec3( 0.5f,  0.5f, 0.0f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(1.0f, 1.0f), glm::vec3(0.0f, 0.0f, 1.0f), // RT
//};
//
//// NOTE : Counter Clockwise
//GLuint indices[] =
//{
//    0, 1, 2,
//    0, 2, 3
//};

// 2. 육면체 : 임시
Vertex vertices[] =
{
    // Position                    // Color                     // TexCoord            // Normal
    //glm::vec3(-0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 0
    //glm::vec3(-0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 1
    //glm::vec3(+0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 2
    //glm::vec3(+0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 3

    //glm::vec3(-0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 4
    //glm::vec3(-0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 5
    //glm::vec3(+0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 6
    //glm::vec3(+0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(.0f, .0f), glm::vec3(.0f, .0f, .0f), // 7


    glm::vec3(-0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(-1.0f, .0f, .0f), // 0  // 0
    glm::vec3(-0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(-1.0f, .0f, .0f), // 4  // 1
    glm::vec3(-0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(1.0f, 0.0f), glm::vec3(-1.0f, .0f, .0f), // 5  // 2
    glm::vec3(-0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(1.0f, 1.0f), glm::vec3(-1.0f, .0f, .0f), // 1  // 3
                                                                                                                          //
    glm::vec3(-0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(.0f, .0f, +1.0f), // 1  // 4
    glm::vec3(-0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(.0f, .0f, +1.0f), // 5  // 5
    glm::vec3(+0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(1.0f, 0.0f), glm::vec3(.0f, .0f, +1.0f), // 6  // 6
    glm::vec3(+0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(1.0f, 1.0f), glm::vec3(.0f, .0f, +1.0f), // 2  // 7
                                                                                                                          //
    glm::vec3(+0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(0.0f, 1.0f), glm::vec3(+1.0f, .0f, .0f), // 2  // 8
    glm::vec3(+0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(0.0f, 0.0f), glm::vec3(+1.0f, .0f, .0f), // 6  // 9
    glm::vec3(+0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(1.0f, 0.0f), glm::vec3(+1.0f, .0f, .0f), // 7  // 10
    glm::vec3(+0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(1.0f, 1.0f), glm::vec3(+1.0f, .0f, .0f), // 3  // 11
                                                                                                                          //
    glm::vec3(+0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(.0f, .0f, -1.0f), // 3  // 12
    glm::vec3(+0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(.0f, .0f, -1.0f), // 7  // 13
    glm::vec3(-0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(1.0f, 0.0f), glm::vec3(.0f, .0f, -1.0f), // 4  // 14
    glm::vec3(-0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(1.0f, 1.0f), glm::vec3(.0f, .0f, -1.0f), // 0  // 15
                                                                                                                          //
    glm::vec3(-0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(.0f, +1.0f, .0f), // 0  // 16
    glm::vec3(-0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(.0f, +1.0f, .0f), // 1  // 17
    glm::vec3(+0.5f,  0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(1.0f, 0.0f), glm::vec3(.0f, +1.0f, .0f), // 2  // 18
    glm::vec3(+0.5f,  0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(1.0f, 1.0f), glm::vec3(.0f, +1.0f, .0f), // 3  // 19
                                                                                                                          //
    glm::vec3(-0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 1.0f, 0.0f), glm::vec2(0.0f, 1.0f), glm::vec3(.0f, -1.0f, .0f), // 5  // 20
    glm::vec3(-0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 0.0f, 0.0f), glm::vec2(0.0f, 0.0f), glm::vec3(.0f, -1.0f, .0f), // 4  // 21
    glm::vec3(+0.5f, -0.5f, -0.5f), glm::vec3(1.0f, 1.0f, 0.0f), glm::vec2(1.0f, 0.0f), glm::vec3(.0f, -1.0f, .0f), // 7  // 22
    glm::vec3(+0.5f, -0.5f,  0.5f), glm::vec3(0.0f, 0.0f, 1.0f), glm::vec2(1.0f, 1.0f), glm::vec3(.0f, -1.0f, .0f), // 6  // 23
};

// NOTE : Counter Clockwise
GLuint indices[] =
{
    0, 1, 2, 0, 2, 3,
    4, 5, 6, 4, 6, 7,
    8, 9, 10, 8, 10, 11,
    12, 13, 14, 12, 14, 15,
    16, 17, 18, 16, 18, 19,
    20, 21, 22, 20, 22, 23,
};

unsigned int numOfVertices = sizeof(vertices) / sizeof(Vertex);
unsigned int numOfIndices  = sizeof(indices) / sizeof(GLuint);

functions.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168

#pragma once

// 키보드 입력받아 처리
void UpdateInputs(GLFWwindow* window)
{
    // ESC 누르면 윈도우 종료
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
    {
        glfwSetWindowShouldClose(window, GLFW_TRUE);
    }
}

void UpdateTransformByInputs(
    GLFWwindow* window,
    glm::vec3& position, glm::vec3& rotation, glm::vec3& scale,
    float moveSpeed, float rotSpeed, float scaleSpeed)
{
    if (glfwGetKey(window, GLFW_KEY_W) == GLFW_PRESS) position.y += moveSpeed;
    if (glfwGetKey(window, GLFW_KEY_S) == GLFW_PRESS) position.y -= moveSpeed;
    if (glfwGetKey(window, GLFW_KEY_A) == GLFW_PRESS) position.x -= moveSpeed;
    if (glfwGetKey(window, GLFW_KEY_D) == GLFW_PRESS) position.x += moveSpeed;
    if (glfwGetKey(window, GLFW_KEY_Q) == GLFW_PRESS) rotation.y -= rotSpeed;
    if (glfwGetKey(window, GLFW_KEY_E) == GLFW_PRESS) rotation.y += rotSpeed;
    if (glfwGetKey(window, GLFW_KEY_Z) == GLFW_PRESS) position.z += moveSpeed;
    if (glfwGetKey(window, GLFW_KEY_C) == GLFW_PRESS) position.z -= moveSpeed;
}

void FramebufferResizeCallback(GLFWwindow* window, int fbW, int fbH)
{
    glViewport(0, 0, fbW, fbH);
}

// 버텍스 또는 프래그먼트 쉐이더 파일에서 읽어와 컴파일
GLuint CompileShader(GLenum shaderType, const char* fileDir)
{
    std::string fileOpenErrorMsg = "ERROR::LOAD_SHADER::COULD_NOT_OPEN_";
    std::string compileErrorMsg = "ERROR::LOAD_SHADER::COULD_NOT_COMPILE_";

    switch (shaderType)
    {
    case GL_VERTEX_SHADER:
        fileOpenErrorMsg += "VERTEX_FILE";
        compileErrorMsg += "VERTEX_SHADER";
        break;

    default:
        fileOpenErrorMsg += "FRAGMENT_FILE";
        compileErrorMsg += "FRAGMENT_SHADER";
        break;
    }

    char infoLog[512];
    GLint success;

    std::string line = "";
    std::string src = "";

    std::ifstream in_file;

    // 쉐이더 파일 읽어오기
    in_file.open(fileDir);

    if (in_file.is_open())
    {
        while (std::getline(in_file, line))
        {
            src += line + "\n";
        }
    }
    else
    {
        std::cout << fileOpenErrorMsg << std::endl;
        in_file.close();
        return NULL;
    }

    in_file.close();

    // 쉐이더 객체 생성, 컴파일
    GLuint shader = glCreateShader(shaderType);
    const GLchar* vertSrc = src.c_str();
    glShaderSource(shader, 1, &vertSrc, NULL);
    glCompileShader(shader);

    // 컴파일 에러 검사
    glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(shader, 512, NULL, infoLog);
        std::cout << compileErrorMsg << std::endl;
        std::cout << infoLog << std::endl;
        return NULL;
    }

    return shader;
}

// 버텍스, 프래그먼트 쉐이더, 프로그램 생성
bool CreateShaders(GLuint& program)
{
    char infoLog[512];
    GLint success;
    const char* ProgramLinkErrorMsg = "ERROR::LOADSHADERS::COULD_NOT_LINK_PROGRAM";

    GLuint vertexShader = CompileShader(GL_VERTEX_SHADER, "vertex_core.glsl");
    GLuint fragmentShader = CompileShader(GL_FRAGMENT_SHADER, "fragment_core.glsl");

    // 프로그램 객체 생성 및 쉐이더 부착
    program = glCreateProgram();
    glAttachShader(program, vertexShader);
    glAttachShader(program, fragmentShader);

    glLinkProgram(program);

    // 링크 에러 검사
    glGetProgramiv(program, GL_LINK_STATUS, &success);
    if (!success)
    {
        glGetProgramInfoLog(program, 512, NULL, infoLog);
        std::cout << ProgramLinkErrorMsg << std::endl;
        std::cout << infoLog << std::endl;
        return NULL;
    }

    // End
    glUseProgram(0);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);
}

// 이미지 파일로부터 텍스쳐 로드
GLuint LoadTextureImage(const char* imageDir)
{
    // 1. Load Image
    int imageWidth, imageHeight;
    unsigned char* image = SOIL_load_image(imageDir,
        &imageWidth, &imageHeight, NULL, SOIL_LOAD_RGBA);

    // 2. Texture Object Gen & Bind
    GLuint textureID; // Texture ID
    glGenTextures(1, &textureID);
    glBindTexture(GL_TEXTURE_2D, textureID);

    // 3. Setup Options
    // UV 벗어날 경우 텍스쳐 반복
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

    // 텍스쳐 축소/확대 필터 설정
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR_MIPMAP_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

    // 4. Generate Texture2D
    if (image)
    {
        glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, imageWidth, imageHeight, 0,
            GL_RGBA, GL_UNSIGNED_BYTE, image);
        glGenerateMipmap(GL_TEXTURE_2D);
    }
    else
    {
        std::cout << "ERROR::TEXTURE_LOAD_FAILED - " << imageDir << std::endl;
    }

    SOIL_free_image_data(image); // Release image

    return textureID;
}

main.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320

#include "libs.h"
#include "errorHandler.hpp"
#include "variables.hpp"
#include "functions.hpp"

int main()
{
    /*****************************************************************
                                   GLFW Init
    ******************************************************************/
    if (!glfwInit())
    {
        std::cout << "GLFW Init ERROR\n";
        return -1;
    }

    const int WINDOW_WIDTH  = 640;
    const int WINDOW_HEIGHT = 480;
    int framebufferWidth  = 0;
    int framebufferHeight = 0;

    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 4);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
    glfwWindowHint(GLFW_RESIZABLE, GL_TRUE);

    GLFWwindow* window
        = glfwCreateWindow(WINDOW_WIDTH, WINDOW_HEIGHT, "OpenGL", NULL, NULL);

    if (!window)
    {
        glfwTerminate();
        return -1;
    }

    glfwSetFramebufferSizeCallback(window, FramebufferResizeCallback);
    glfwGetFramebufferSize(window, &framebufferWidth, &framebufferHeight);
    //glViewport(0, 0, framebufferWidth, framebufferHeight);

    // 현재 컨텍스트에서 윈도우 생성
    glfwMakeContextCurrent(window);

    // 프레임 진행 속도 설정
    glfwSwapInterval(1);

    /*****************************************************************
                                   GLEW Init
    ******************************************************************/
    // glewInit은 rendering context를 만들고 난 이후에 해야 함
    if (glewInit() != GLEW_OK)
    {
        std::cout << "GLEW INIT ERROR\n";
        glfwTerminate();
    }

    // 간단히 GLEW 버전 확인
    std::cout << glGetString(GL_VERSION) << std::endl;

    /*****************************************************************
                                   Options
    ******************************************************************/
    glEnable(GL_DEPTH_TEST);

    //glEnable(GL_CULL_FACE);
    //glCullFace(GL_BACK);
    //glFrontFace(GL_CCW); // 시계 반대 방향으로 구성된 폴리곤을 전면으로 설정

    // 픽셀 블렌딩 연산 지정
    glEnable(GL_BLEND);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

    // GL_LINE : 폴리곤을 선으로 그리기 (Wireframe Mode)
    // GL_FILL : 폴리곤을 색상으로 채우기
    glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);

    /*****************************************************************
                                   Objects
    ******************************************************************/
    // Shader Init
    GLuint shaderProgram;
    if (!CreateShaders(shaderProgram))
    {
        glfwTerminate();
    }

    // Model


    // VAO : Vertex Array Object
    // VAO Gen & Bind
    GLuint vao;
    glCreateVertexArrays(1, &vao);
    glBindVertexArray(vao);

    // VBO : Vertex Buffer Object
    // VBO Gen & Bind & Send Data
    GLuint vbo;
    glGenBuffers(1, &vbo);
    glBindBuffer(GL_ARRAY_BUFFER, vbo);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    // EBO : Element Buffer Object
    // EBO Gen & Bind & Send Data
    GLuint ebo;
    glGenBuffers(1, &ebo);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);


    // Set VertexAttribPointers & Enable
    // 1. Position
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, position));
    glEnableVertexAttribArray(0);

    // 2. Color
    glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, color));
    glEnableVertexAttribArray(1);

    // 3. TexCoord
    glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, texcoord));
    glEnableVertexAttribArray(2);

    // 4. Normal
    glVertexAttribPointer(3, 3, GL_FLOAT, GL_FALSE, sizeof(Vertex), (GLvoid*)offsetof(Vertex, normal));
    glEnableVertexAttribArray(3);

    /*****************************************************************
                                   Textures
    ******************************************************************/
    GLuint texture0 = LoadTextureImage("Images/MoonCat.png");
    GLuint texture1 = LoadTextureImage("Images/Wall.png");

    /*****************************************************************
                                   Transformation
    ******************************************************************/
    // Object Transform Values
    glm::vec3 position(0.0f, 0.0f, 0.0f);
    glm::vec3 rotation(0.0f, 0.0f, 0.0f);
    glm::vec3 scale(1.0f, 1.0f, 1.0f);

    // MVP Matrices
    glm::mat4 modelMatrix(1.0f);
    glm::mat4 viewMatrix(1.0f);
    glm::mat4 projectionMatrix(1.0f);

    // 1. Model
    modelMatrix = glm::translate(modelMatrix, position);
    modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.x), glm::vec3(1.f, 0.f, 0.f));
    modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.y), glm::vec3(0.f, 1.f, 0.f));
    modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.z), glm::vec3(0.f, 0.f, 1.f));
    modelMatrix = glm::scale(modelMatrix, scale);

    // 2. View
    glm::vec3 camPos(0.0f, 0.0f, 1.0f);
    glm::vec3 camFrontDir(0.0f, 0.0f, -1.0f);
    glm::vec3 worldUpDir(0.0f, 1.0f, 0.0f);

    viewMatrix = glm::lookAt(camPos, camPos + camFrontDir, worldUpDir);

    // 3. Projection
    float fov = 90.0f; // Field of View Angle
    float nearPlane = 0.1f;
    float farPlane = 1000.0f;

    projectionMatrix = glm::perspective
    (
        glm::radians(fov),
        static_cast<float>(framebufferWidth) / framebufferHeight,
        nearPlane,
        farPlane
    );

    /*****************************************************************
                                   Lights
    ******************************************************************/
    glm::vec3 lightPos0(0.0f, 0.0f, -1.0f);

    /*****************************************************************
                                   Uniforms (Init)
    ******************************************************************/
    glUseProgram(shaderProgram);

    // 1. Textures
    glUniform1i(glGetUniformLocation(shaderProgram, "catTex"), 0);
    glUniform1i(glGetUniformLocation(shaderProgram, "wallTex"), 1);

    // 2. Matrices
    glUniformMatrix4fv
    (
        glGetUniformLocation(shaderProgram, "ModelMatrix"),
        1, GL_FALSE, glm::value_ptr(modelMatrix)
    );
    glUniformMatrix4fv
    (
        glGetUniformLocation(shaderProgram, "ViewMatrix"),
        1, GL_FALSE, glm::value_ptr(viewMatrix)
    );
    glUniformMatrix4fv
    (
        glGetUniformLocation(shaderProgram, "ProjectionMatrix"),
        1, GL_FALSE, glm::value_ptr(projectionMatrix)
    );

    // 3. Light Pos
    glUniform3fv(glGetUniformLocation(shaderProgram, "lightPos0"), 1, glm::value_ptr(lightPos0));

    // 4. Cam Pos
    glUniform3fv(glGetUniformLocation(shaderProgram, "cameraPos"), 1, glm::value_ptr(camPos));

    glUseProgram(0);

    /*****************************************************************
                                   Main Loop
    ******************************************************************/
    while (!glfwWindowShouldClose(window))
    {
        // =========================== Init ============================ //
        GLCheck(
        // Update Input
        glfwPollEvents();
        UpdateInputs(window);

        // Clear
        glClearColor(0.f, 0.f, 0.f, 1.f);
        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);

        // Variables
        double time = glfwGetTime();
        );

        // ========================= Bindings ========================== //
        GLCheck(
        // Use a shader program
        glUseProgram(shaderProgram);

        // Bind VAO
        glBindVertexArray(vao);

        // Activate, Bind Textures
        glActiveTexture(GL_TEXTURE0);
        glBindTexture(GL_TEXTURE_2D, texture0);

        glActiveTexture(GL_TEXTURE1);
        glBindTexture(GL_TEXTURE_2D, texture1);
        );

        // ========================= Update Uniforms ==================== //

        // ========================= Update Transform =================== //
        GLCheck(
        UpdateTransformByInputs(window, position, rotation, scale, 0.04f, 5.0f, 0.04f);

        modelMatrix = glm::mat4(1.0f);
        modelMatrix = glm::translate(modelMatrix, position);
        modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.x), glm::vec3(1.f, 0.f, 0.f));
        modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.y), glm::vec3(0.f, 1.f, 0.f));
        modelMatrix = glm::rotate(modelMatrix, glm::radians(rotation.z), glm::vec3(0.f, 0.f, 1.f));
        modelMatrix = glm::scale(modelMatrix, scale);

        glUniformMatrix4fv
        (
            glGetUniformLocation(shaderProgram, "ModelMatrix"),
            1, GL_FALSE, glm::value_ptr(modelMatrix)
        );

        // 회전만 적용되는 노멀 변환용 행렬
        glm::mat4 modelMatrixForNormal(1.0f);
        modelMatrixForNormal = glm::rotate(modelMatrixForNormal, glm::radians(rotation.x), glm::vec3(1.f, 0.f, 0.f));
        modelMatrixForNormal = glm::rotate(modelMatrixForNormal, glm::radians(rotation.y), glm::vec3(0.f, 1.f, 0.f));
        modelMatrixForNormal = glm::rotate(modelMatrixForNormal, glm::radians(rotation.z), glm::vec3(0.f, 0.f, 1.f));

        glUniformMatrix4fv
        (
            glGetUniformLocation(shaderProgram, "ModelMatrixForNormal"),
            1, GL_FALSE, glm::value_ptr(modelMatrixForNormal)
        );
        );

        // ========================= Track Frame Size Change ============ //
        GLCheck(
        glfwGetFramebufferSize(window, &framebufferWidth, &framebufferHeight);

        projectionMatrix = glm::perspective
        (
            glm::radians(fov),
            static_cast<float>(framebufferWidth) / framebufferHeight,
            nearPlane,
            farPlane
        );
        glUniformMatrix4fv
        (
            glGetUniformLocation(shaderProgram, "ProjectionMatrix"),
            1, GL_FALSE, glm::value_ptr(projectionMatrix)
        );
        );

        // ========================== Draw ============================= //
        GLCheck(glDrawElements(GL_TRIANGLES, numOfIndices, GL_UNSIGNED_INT, 0));

        // ========================== End ============================== //

        // End Draw
        GLCheck(glfwSwapBuffers(window););
        GLCheck(glFlush(););

        // Reset bindings
        GLCheck(glBindVertexArray(0););
        GLCheck(glUseProgram(0););
        //GLCheck(glActiveTexture(0);) // error
        GLCheck(glBindTexture(GL_TEXTURE_2D, 0););
    }

    // End of Program
    glfwDestroyWindow(window);
    glfwTerminate();

    glDeleteProgram(shaderProgram);

    return 0;
}
